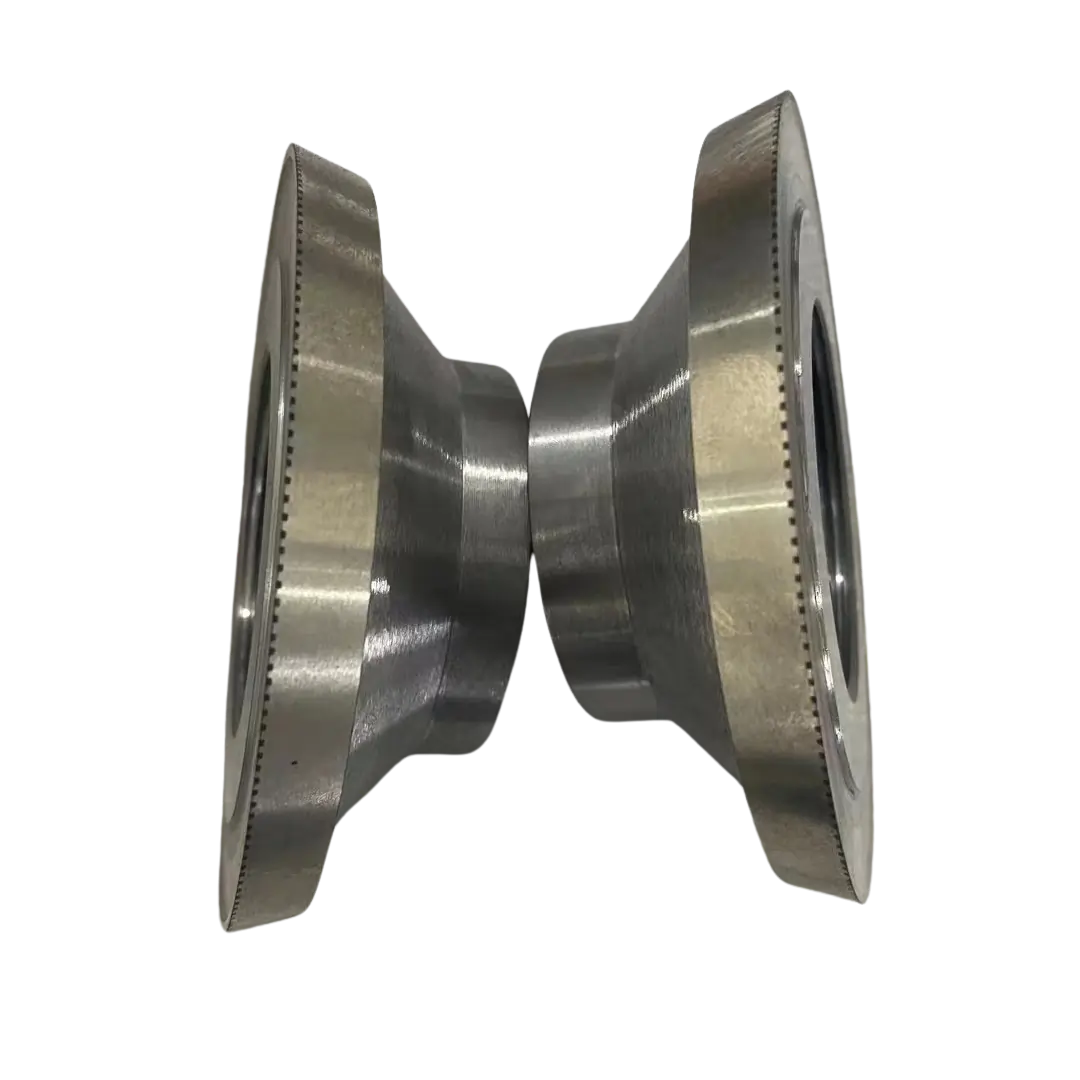

In the world of precision manufacturing, diamond dressing tools are indispensable for achieving the highest levels of accuracy, efficiency, and surface finish quality. From aerospace engines to automotive components, these dressing tools have dramatically improved grinding processes across a wide range of industries.
In this comprehensive guide, we explore how our diamond dressing tools—such as CH-L02, CH-L03, CH-L05, C2020, C3015, C4020, and J503—are improving manufacturing processes in 8 key industries. Whether you’re producing aerospace components, bearings, gears, or rolls, this article will show you how diamond dressing tools can enhance your operations.
1, Diamond Dressing Tools for Automotive Parts Manufacturing
Workpiece: Large Automotive Drive Shaft
Material: Medium Carbon Steel
Grinding Machine: CNC Cylindrical Grinder
Grinding Wheel Size: 400*40*203
Grinding Wheel Specification: SA 400x40x203 A 60L
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.2μm
Previous Tool: Diamond Dresser from Another Supplier
Current Tool: Cast Grind Solutions diamond dresser
Efficiency Ratio: 1:1.5
Tool Life Ratio: 1:2
Compared with other manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 1.5-2x.
Tool Life: Increased by 2-3x, reducing downtime.
Surface Finish: Consistently achieved Ra0.2-0.1μm.
2, Diamond Dressing Tools for Engine Component Manufacturing
Case 1: Precision Grinding of Automotive Camshafts
Workpiece: Automotive Camshaft
Material: Alloy Steel, Alloy Cast Iron
Grinding Machine: CNC Cylindrical Grinder, Centerless Grinder
Grinding Wheel Size: 400*75*203mm, 600*200*305mm
Grinding Method: Rough Grinding, Precision Grinding
Surface Roughness Requirement: Ra0.8-0.2μm
Previous Tool: Single-Point Diamond Dresser from Another Supplier
Current Tool: CH-L03, CH-S10 from Cast Grind Solutions
Compared with previous manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Previously, multiple dressing cycles were required to achieve the desired wheel profile. With CH-L03 and CH-S10, single-pass dressing is now sufficient, significantly reducing cycle times.
Tool Life: The lifespan of the precision grinding tools increased by three times, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.8-0.2μm, ensuring high-quality camshafts.
Case 2: Precision Grinding of Diesel Engine Fuel System Components
Workpiece: Fuel Injection Pump Assembly, Nozzle, and Plunger Components
Material: GCr15, W18Cr4V Steel
Grinding Machine: Universal Cylindrical Grinder, High-Precision Centerless Grinder
Grinding Wheel Size: 500*75*203mm, 500*200*305mm
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4-0.2μm
Previous Tool: Single-Point Diamond Dresser from Another Supplier
Current Tool: CH-L03, CH-S08, C3015 from Cast Grind Solutions
Compared with previous manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: The number of components ground per dressing cycle doubled, significantly improving productivity.
Tool Life: The overall service life of the tools increased by more than two times, reducing downtime and maintenance costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4-0.2μm, meeting stringent quality standards.
3,Diamond Dressing Tools for Roll Manufacturing
Case 1: Precision Grinding of High-Speed Steel and Tungsten Carbide Rolls
Workpiece: Precision Rolls
Material: High-Speed Steel, Tungsten Carbide
Grinding Machine: CNC Roll Cylindrical Grinder
Grinding Wheel Size: 750*75*305mm 60# 80#
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4μm
Previous Tool: Natural Diamond Dresser from another supplier
Current Tool: CH-S10, CH-S15 from Cast Grind Solutions
Compared with previous manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 3x, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4μm, ensuring high-quality rolls.
Case 2: Precision Grinding of Cold-Rolled Steel Strips
Workpiece: Cold-Rolled Steel Strips
Material: Stainless Steel, Low-Carbon Steel
Grinding Machine: CNC Roll Cylindrical Grinder
Grinding Wheel Size: 900*100*305mm
Grinding Wheel Specification: P 900x100x305 WA 80K
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4-0.2μm
Previous Tool: Natural Diamond Dresser from another International Supplier
Current Tool: CH-S20 from Cast Grind Solutions
Compared with previous manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 1.2x, enhancing productivity.
Tool Life: The lifespan of the tools matched the previous tools, but with better performance consistency.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4-0.2μm, meeting stringent quality standards.
Case 3: Precision Grinding of Aluminum Foils and Plates
Workpiece: Precision Aluminum Foils and Plates
Material: Carbon-Coated Aluminum Foil, Hard Aluminum Foil
Grinding Machine: CNC Cylindrical Grinder, Roll Cylindrical Grinder
Grinding Wheel Size: 700*75*305mm, 900*75*305mm
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4-0.2μm
Previous Tool: Natural Diamond Dresser from another supplier
Current Tool: CH-10, CH-S20 from Cast Grind Solutions
Compared with previous manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 3x, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4-0.2μm, ensuring high-quality aluminum foils and plates.
Case 4: Precision Grinding of Stainless Steel Rolls
Workpiece: Stainless Steel Rolls
Material: Stainless Steel
Grinding Machine: Roll Cylindrical Grinder
Grinding Wheel Size: 600*63*305mm, 750*75*305mm
Grinding Method: Semi-Finish and Precision Grinding
Surface Roughness Requirement: Ra0.8-0.2μm
Previous Tool: Natural Diamond Dresser from another Supplier
Current Tool: CH-S15 from Cast Grind Solutions
Compared with previous manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 3x, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.8-0.2μm, ensuring high-quality stainless steel rolls.
4, Diamond Dressing Tools for Precision Manufacturing
Case 1: Precision Grinding of Copper Alloy Pressure Gauges
Workpiece: Precision Pressure Gauges
Material: Copper Alloy
Grinding Machine: CNC Internal Grinder, CNC Cylindrical Grinder
Grinding Wheel Size: 20*10*10mm, 400*50*127mm
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.1-0.05μm
Previous Tool: Single-Point Diamond Dresser from Another Supplier
Current Tool: CH-L02 from Cast Grind Solutions
Compared with other manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 3x, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.1-0.05μm, ensuring high-quality pressure gauges.
Case 2: Precision Grinding of Textile Machinery Components
Workpiece: Air Jet Spinning Parts (Spinning Cups, Combing Rollers)
Material: Hard Aluminum Alloy, Copper Alloy
Grinding Machine: CNC Internal Grinder, CNC Cylindrical Grinder
Grinding Wheel Size: 30*10*12mm, 300*40*127mm GC 120#
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.2-0.05μm
Previous Tool: Single-Point Diamond Dresser from Another Supplier
Current Tool: CH-L05, J1013 from Cast Grind Solutions
Compared with other manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: The number of components ground per dressing cycle doubled, significantly improving productivity.
Tool Life: The lifespan of the tools increased by 5x, reducing downtime and maintenance costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.2-0.05μm, meeting stringent quality standards.

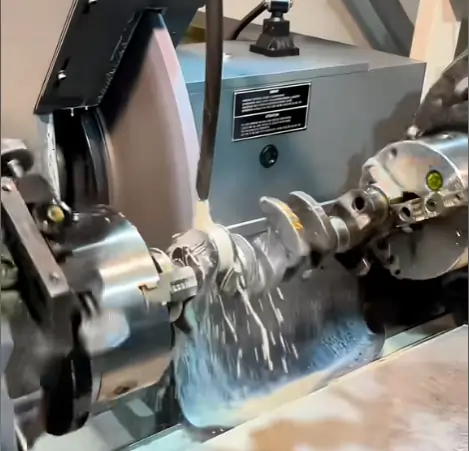

5, Diamond Dressing Tools for Crankshaft Manufacturing

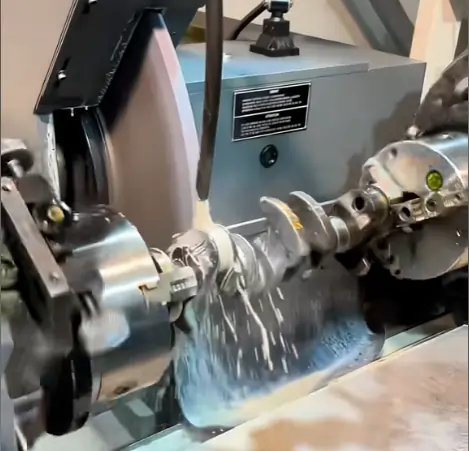

Case 1: Precision Grinding of Automotive Engine Crankshafts
Workpiece: Automotive Engine Crankshaft
Material: Ductile Iron, Forged Steel
Grinding Machine: CNC Crankshaft Grinder, CNC High-Speed Cylindrical Grinder
Grinding Wheel Size: 750*305*125mm A 80#
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.2-0.1μm
Previous Tool: Formed Wheel Dressing Tool from Another Supplier
Current Tool: C2020 from Cast Grind Solutions
Compared with other manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 1.5x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased from 2,000 to over 5,000 workpieces, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.2-0.1μm, ensuring high-quality crankshafts.
Case 2: Precision Grinding of Motorcycle and Garden Machinery Crankshafts
Workpiece: Motorcycle Crankshaft, Garden Machinery Crankshaft
Material: Ductile Iron
Grinding Machine: CNC Cylindrical Grinder, Conventional Cylindrical Grinder
Grinding Wheel Size: 500*50*203mm 80#
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4-0.2μm
Previous Tool: Single-Point Diamond Dresser and Formed Diamond Tool from Another Supplier
Current Tool: C3015, CH-L03 from Cast Grind Solutions
Compared with other manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased from 3,000 to over 6,500 workpieces, reducing downtime and maintenance costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4-0.2μm, meeting stringent quality standards.
6, Diamond Dressing Tools for Bearing Manufacturing
Case 1: Precision Grinding of Deep Groove Ball Bearings
Workpiece: Deep Groove Ball Bearings
Material: T12, GCr15 Bearing Steel
Grinding Machine: Cylindrical Grinder, Centerless Grinder
Grinding Wheel Size: 500*75*203mm, 600*200*305mm 60#
Grinding Method: Semi-Finish and Precision Grinding
Surface Roughness Requirement: Ra0.8-0.2μm
Previous Tool: Single-Point Diamond Dresser from Another Supplier
Current Tool: CH-L03, CH-L05 from Cast Grind Solutions
Compared with other manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 4x, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.8-0.2μm, ensuring high-quality bearings.
Case 2: Precision Grinding of Cylindrical and Tapered Roller Bearings
Workpiece: Cylindrical Roller Bearings, Tapered Roller Bearings
Material: GCr15 Bearing Steel
Grinding Machine: Cylindrical Grinder, Internal Grinder
Grinding Wheel Size: 400*50*203mm, 500*75*203mm WA 80#
Grinding Method: Semi-Finish and Precision Grinding
Surface Roughness Requirement: Ra1.0-0.2μm
Previous Tool: Single-Point Diamond Dresser from Another Supplier
Current Tool: CH-L02, CH-L05 from Cast Grind Solutions
Compared with other manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 3x, reducing downtime and maintenance costs.
Surface Finish: Consistently achieved the required surface roughness of Ra1.0-0.2μm, meeting stringent quality standards.
7,Diamond Dressing Tools for Worm Gear and Gear Manufacturing
Case 1: Precision Grinding of Worm Gears for Reducers
Workpiece: Worm Gears for Reducers
Material: Alloy Steel, Tin Bronze
Grinding Machine: CNC Cylindrical Grinder, Imported High-Precision Gear Grinder
Grinding Wheel Size: 500*250*100mm 80#
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4-0.1μm
Previous Tool: Natural Diamond Dresser from Another Supplier
Current Tool: C3015 from Cast Grind Solutions
Compared with previous manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 3x, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4-0.1μm, ensuring high-quality worm gears.
Case 2: Precision Grinding of Spur Gears
Workpiece: Spur Gears
Material: 20CrMn, 20CrMnTi Carburized Alloy Steel
Grinding Machine: High-Precision Gear Grinder, Cylindrical Grinder
Grinding Wheel Size: 400*203*100mm, 350*40*127mm
Grinding Wheel Specification: PSX 350x40x127 C 120P
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4-0.1μm
Previous Tool: Natural Diamond Dresser from Another Supplier
Current Tool: CH-S10 from Cast Grind Solutions
Compared with previous manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: The number of components ground per dressing cycle doubled, significantly improving productivity.
Tool Life: The lifespan of the tools increased by 3-4x, reducing downtime and maintenance costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4-0.1μm, meeting stringent quality standards.
8, Advanced Diamond Dressing Tools

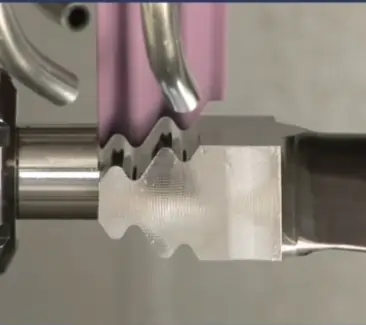

Case: Precision Grinding of Aerospace Gas Turbine Engine Components
Workpiece: Aerospace Gas Turbine Engine Components
Material: GTDZ810 Alloy, K488 Alloy
Grinding Machine: High-Precision CNC Cylindrical Grinder, High-Precision CNC Centerless Grinder
Grinding Wheel Size: 750*125*305mm, 600*200*305mm 220#
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.1μm
Previous Tool: Natural Diamond Dresser from Another Supplier
Current Tool: C4020, J503 from Cast Grind Solutions
Compared with previous manufacturers’ dressing tools, Cast Grind Solutions’ dressing tools have the following improvements:
Efficiency: The number of components ground per dressing cycle is comparable to international top brand tools, ensuring high productivity.
Tool Life: The lifespan of the tools is 80% of international top brand tools, but with improved stability and consistency.
Surface Finish: Consistently achieved the required surface roughness of Ra0.1μm, meeting stringent aerospace quality standards.
Why Diamond Dressing Tools Are Essential Across Industries
Diamond dressing tools are indispensable for modern manufacturing because they:
Improve Efficiency: Faster dressing cycles and reduced downtime boost productivity.
Extend Tool Life: Longer-lasting tools lower operational costs.
Ensure Precision: Consistent dressing delivers high-quality surface finishes.
Reduce Costs: While the initial investment may be higher, the long-term savings are substantial.

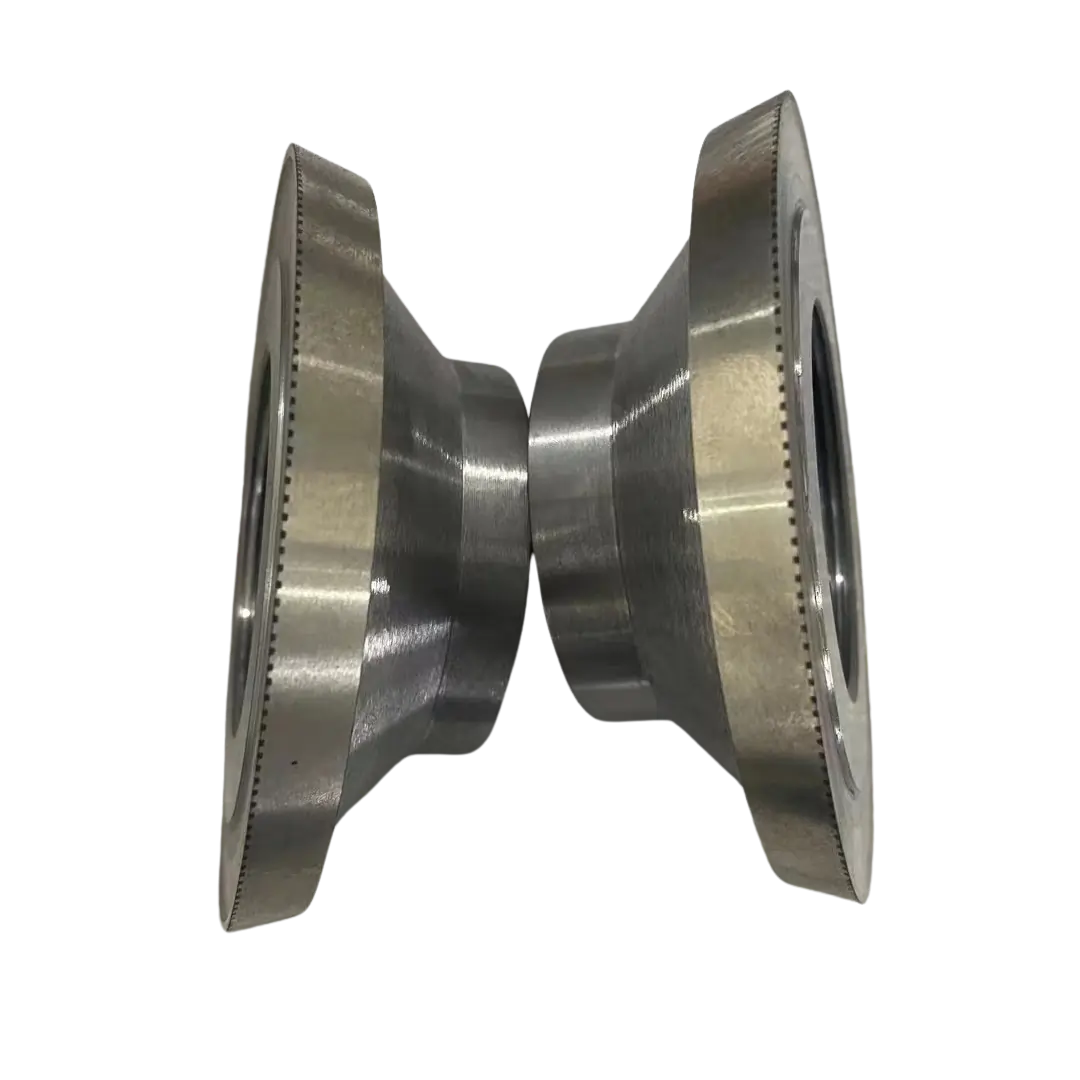

Conclusion: Unlocking the Potential of Diamond Dressing Tools
From aerospace engines to automotive components, Cast Grind Solutions diamond dressing tools have proven to be game-changers across industries. By investing in advanced tools like CH-L02, CH-L03, CH-L05, C2020, C3015, C4020, and J503, manufacturers can achieve unparalleled precision, efficiency, and cost savings.
At Cast Grind Solutions, we are committed to helping our customers overcome their grinding challenges with innovative solutions. Whether you’re producing aerospace components, bearings, gears, or rolls, we’re here to help you achieve your goals.
If you’re facing similar challenges in your grinding processes, let’s talk. Our team is ready to provide tailored solutions that meet your specific needs.
Contact us today to learn more about our diamond dressing tools and how they can transform your manufacturing operations.
