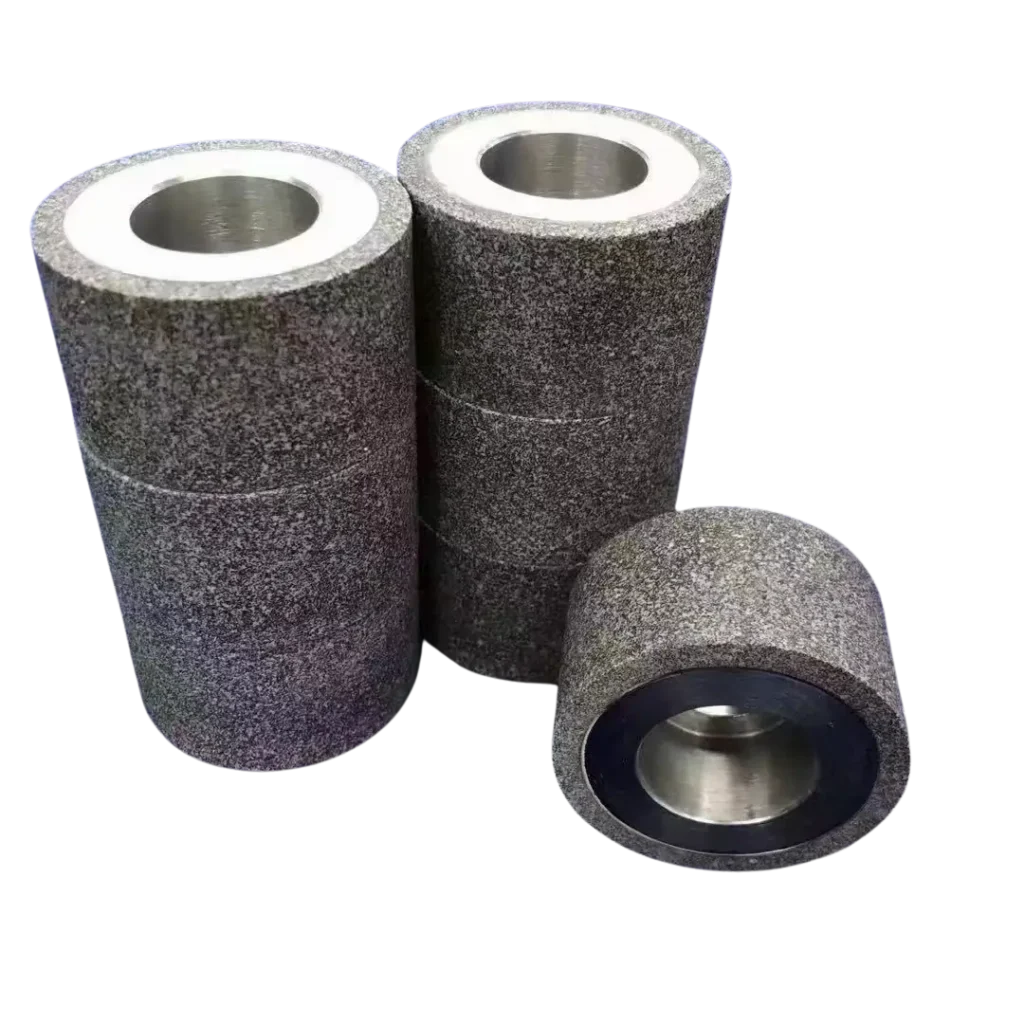

Choosing and using ceramic CBN grinding wheels correctly can be the difference between excellent results and wasted investment. This guide walks you through everything you need to know – from machine compatibility to dressing procedures.
Let’s get started.
Step 1: Check Your Machine Compatibility
Before buying ceramic CBN wheels, verify that your grinder can handle them.
Why this matters: Ceramic CBN is a superabrasive. If your machine is too slow, you will not get the performance you’re paying for.
The requirement: Minimum line speed of 25 m/s
How to calculate required spindle speed:
| Wheel Diameter | Minimum RPM Required |
|---|---|
| 10 mm | 47,770 RPM |
| 15 mm | 31,850 RPM |
| 20 mm | 23,885 RPM |
| 25 mm | 19,108 RPM |
| 30 mm | 15,923 RPM |
Formula: RPM = (25 m/s × 60,000) ÷ (π × Diameter in mm)
Action item: Check your grinder’s specifications before purchasing.
Step 2: Select the Right Abrasive Concentration
Concentration affects efficiency, surface quality, and wheel life. Most people overlook this parameter – don’t be one of them.
The simple rule:
| Application | Concentration | Why |
|---|---|---|
| Rough grinding | Higher | More grains = higher material removal |
| Finish grinding | Lower | Fewer grains = less surface scratching |
General guidelines by bond type:
| Bond Type | Concentration Range |
|---|---|
| Resin bond | 70–100% |
| Ceramic bond | 100–200% |
| Sintered/metal bond | 75–150% |
Key takeaway: Concentration is not “higher is better.” Match it to your specific process.
Step 3: Choose the Correct Feed Rate by Grit Size
Feed rate directly impacts both efficiency and surface quality.
Recommended baseline feed rates:
| Grit Size | Feed Rate (mm/pass) |
|---|---|
| 100–150# | 0.055 mm |
| 170–240# | 0.035 mm |
| 240# and finer | 0.015 mm |
Adjustment factors:
-
Machine rigidity
-
Spindle speed
-
Workpiece material hardness
-
Coolant effectiveness
Action item: Start with the baseline, then fine-tune based on actual results.
Step 4: Install and Mount the Wheel Correctly
Proper mounting ensures safety and performance.
Quick checklist:
-
Inspect wheel for damage before mounting
-
Clean the spindle and flanges
-
Use proper balancing if required
-
Tighten to manufacturer’s torque specifications
-
Run wheel at operating speed for 1 minute before grinding (with safety guard in place)
Step 5: Set Up Dressing Parameters
Dressing is critical for maintaining wheel performance. Two methods are commonly used.
Method 1: Diamond Dresser (Single-point)
Example setup:
-
Wheel thickness: 50 mm
-
Grit size: #80 (grain diameter ≈ 0.18 mm)
-
Wheel speed: 1,614 RPM
Calculated traverse speed:
| Parameter | Value |
|---|---|
| Upper limit | 290 mm/min |
| Lower limit | 145 mm/min |
| Recommended range | 145–290 mm/min |
Calculated traverse time per pass:
| Parameter | Value |
|---|---|
| Fastest | ~10.3 seconds |
| Slowest | ~20.7 seconds |
| Recommended range | 10.3–20.7 seconds |
Method 2: Diamond Roller Dresser
Critical rule – never break this:
⚠️ Never set the speed ratio to 1 or near 1
What is speed ratio?
Speed Ratio = (Diamond dressing roller line speed) ÷ (grinding Wheel line speed)
Recommended starting parameters:
| Grinding Stage | Direction | Speed Ratio |
|---|---|---|
| Finish grinding (high surface finish required) | Counter-direction | ~0.81 |
| Rough grinding / high stock removal | Same-direction | ~0.40 |
Step 6: Know When to Dress
Dress the wheel when you notice any of these signs:
| Sign | What It Means |
|---|---|
| Vibration | Wheel is out of balance or loaded |
| Slipping | Wheel is glazed or dull |
| Burning | Wheel is dull or coolant is insufficient |
| Poor surface finish | Wheel needs sharpening |
| Increased spindle load | Wheel is dull |
Pro tip: For high surface finish requirements, dress at slower speeds. For roughing, faster passes are acceptable.
Step 7: Optimize for Your Workpiece Material
Different materials require different approaches.
For Hardened Steel (SKD11, 42CrMo, Bearing Steel)
| Parameter | Recommendation |
|---|---|
| Wheel type | Standard ceramic CBN |
| Concentration | 100–200% |
| Feed rate | As per grit size table |
| Expected dressing interval | 80–200 parts |
For Titanium Alloy
| Parameter | Recommendation |
|---|---|
| Wheel type | High-porosity ceramic CBN |
| Line speed | 45 m/s |
| Coolant | Grinding fluid flushing (required) |
| Expected surface finish | Ra 0.4μm |
For High-Speed Steel (HSS)
| Parameter | Recommendation |
|---|---|
| Wheel type | Standard ceramic CBN |
| Concentration | 150–200% |
| Feed rate | Slightly lower than baseline |
| Special note | Excellent results due to CBN’s affinity for HSS |
Step 8: Monitor Performance and Adjust
Track these metrics to ensure optimal performance:
Key performance indicators:
| Metric | Target |
|---|---|
| Dressing interval | 80–200 parts (depending on application) |
| Bore tolerance | ±0.002mm |
| Surface finish | ≤ Ra 0.1μm |
| Wheel life | 10–20x longer than alumina |
When results fall short:
| Problem | Likely Cause | Solution |
|---|---|---|
| Poor surface finish | Concentration too high or feed rate too high | Lower concentration or reduce feed rate |
| Short dressing interval | Concentration too low or wheel too soft | Increase concentration or use harder grade |
| Burning | Feed rate too high or insufficient coolant | Reduce feed rate or improve cooling |
| Vibration | Wheel imbalance or incorrect mounting | Rebalance or remount |
Quick Reference Summary Table
| Step | Key Action | Critical Parameter |
|---|---|---|
| 1 | Check machine compatibility | Minimum 25 m/s line speed |
| 2 | Select concentration | Rough: higher, Finish: lower (100–200%) |
| 3 | Choose feed rate | 0.055 / 0.035 / 0.015 mm/pass by grit |
| 4 | Mount wheel correctly | Clean, balance, torque properly |
| 5 | Set dressing parameters | Speed ratio never = 1 |
| 6 | Know when to dress | Vibration, slipping, or burning |
| 7 | Optimize for material | Titanium needs high porosity + 45 m/s |
| 8 | Monitor and adjust | Track dressing interval and surface finish |
Final Checklist Before You Start
-
Grinder speed ≥ 25 m/s verified
-
Correct concentration selected for your application
-
Feed rate matched to grit size
-
Dressing method and parameters established
-
Coolant system working properly
-
Safety guards in place
-
Test run completed on sample workpiece
