In the roll manufacturing industry, precision grinding is essential for producing high-quality rolls used in applications such as steel, aluminum, and stainless steel processing. At Cast Grind Solutions, we specialize in providing advanced diamond dressing tools that optimize grinding processes, delivering measurable improvements in efficiency, tool life, and surface finish.
Here, we present four application cases where our diamond dressing tools—CH-S10, CH-S15, CH-S20, and CH-10—transformed the grinding processes for precision rolls, cold-rolled steel strips, aluminum foils, and stainless steel rolls.

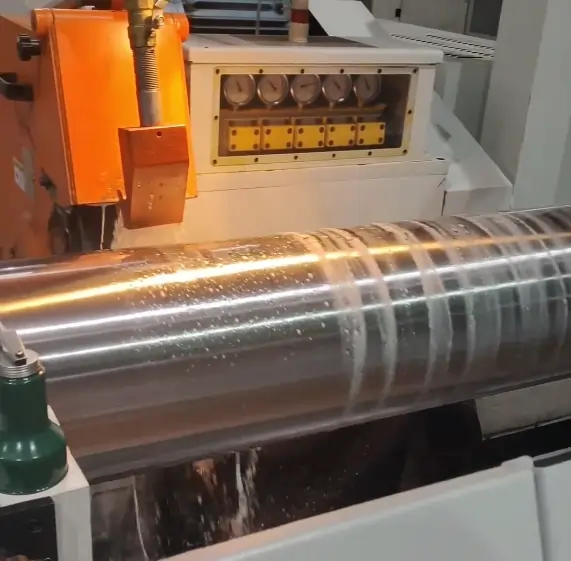

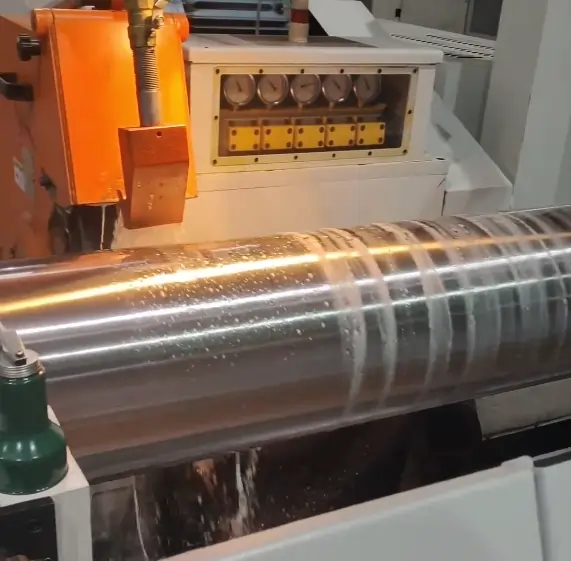

Case 1: Precision Grinding of High-Speed Steel and Tungsten Carbide Rolls
Workpiece: Precision Rolls
Material: High-Speed Steel, Tungsten Carbide
Grinding Machine: CNC Roll Cylindrical Grinder
Grinding Wheel Size: 750*75*305mm 60# 80#
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4μm
Previous Tool: Natural Diamond Dresser from another supplier
Current Tool: CH-S10, CH-S15 from Cast Grind Solutions
Results:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 3x, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4μm, ensuring high-quality rolls.
Case 2: Precision Grinding of Cold-Rolled Steel Strips
Workpiece: Cold-Rolled Steel Strips
Material: Stainless Steel, Low-Carbon Steel
Grinding Machine: CNC Roll Cylindrical Grinder
Grinding Wheel Size: 900*100*305mm
Grinding Wheel Specification: P 900x100x305 WA 80K
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4-0.2μm
Previous Tool: Natural Diamond Dresser from another International Supplier
Current Tool: CH-S20 from Cast Grind Solutions
Results:
Efficiency: Dressing efficiency improved by 1.2x, enhancing productivity.
Tool Life: The lifespan of the tools matched the previous tools, but with better performance consistency.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4-0.2μm, meeting stringent quality standards.
Case 3: Precision Grinding of Aluminum Foils and Plates
Workpiece: Precision Aluminum Foils and Plates
Material: Carbon-Coated Aluminum Foil, Hard Aluminum Foil
Grinding Machine: CNC Cylindrical Grinder, Roll Cylindrical Grinder
Grinding Wheel Size: 700*75*305mm, 900*75*305mm
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4-0.2μm
Previous Tool: Natural Diamond Dresser from another supplier
Current Tool: CH-10, CH-S20 from Cast Grind Solutions
Results:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 3x, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4-0.2μm, ensuring high-quality aluminum foils and plates.
Case 4: Precision Grinding of Stainless Steel Rolls
Workpiece: Stainless Steel Rolls
Material: Stainless Steel
Grinding Machine: Roll Cylindrical Grinder
Grinding Wheel Size: 600*63*305mm, 750*75*305mm
Grinding Method: Semi-Finish and Precision Grinding
Surface Roughness Requirement: Ra0.8-0.2μm
Previous Tool: Natural Diamond Dresser from another Supplier
Current Tool: CH-S15 from Cast Grind Solutions
Results:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased by 3x, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.8-0.2μm, ensuring high-quality stainless steel rolls.
Why Diamond Dressing Tools Are Essential in Roll Manufacturing
The success of these cases underscores the importance of advanced diamond dressing tools in roll manufacturing. Here’s why they are indispensable:
Improved Efficiency: Faster dressing cycles and reduced downtime lead to higher productivity.
Extended Tool Life: Longer-lasting tools lower operational costs and minimize interruptions.
Superior Precision: Consistent dressing ensures high-quality surface finishes, critical for roll performance.
Cost-Effectiveness: While the initial investment may be higher, the long-term savings and performance gains are substantial.
At Cast Grind Solutions, we are committed to helping our customers overcome their grinding challenges with innovative solutions. Whether you’re producing precision rolls, cold-rolled steel strips, aluminum foils, or stainless steel rolls, we’re here to help you achieve your goals.
If you’re facing similar challenges in your grinding processes, let’s talk. Our team is ready to provide tailored solutions that meet your specific needs.
