In the automotive and machinery industries, crankshafts are critical components that require precision grinding to ensure optimal performance and durability. At Cast Grind Solutions, we specialize in providing advanced diamond dressing tools that optimize grinding processes, delivering measurable improvements in efficiency, tool life, and surface finish.

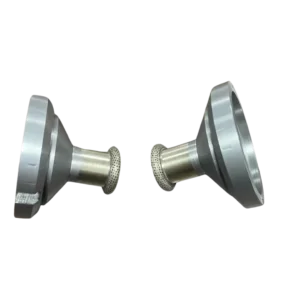

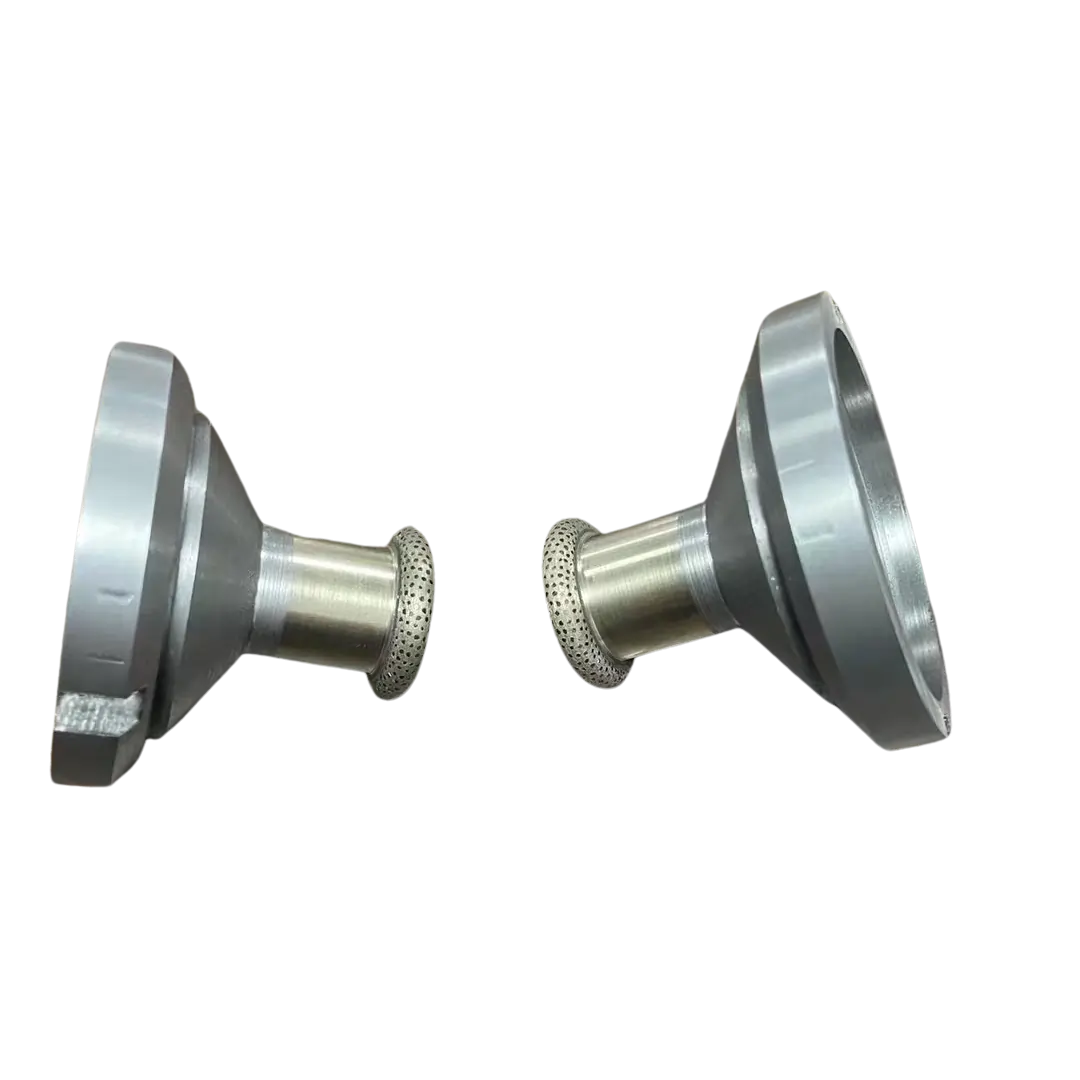

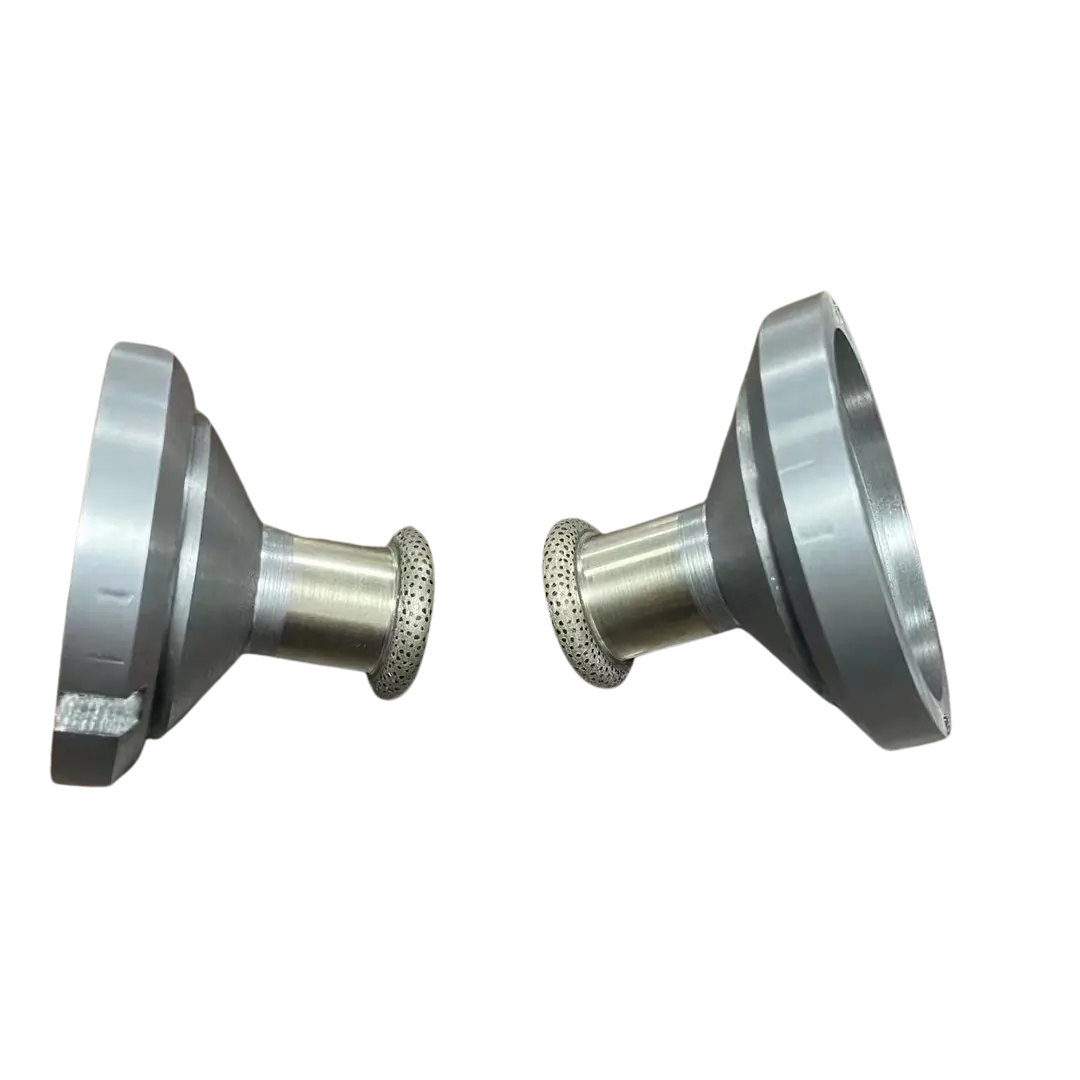

Here, we present two application cases where our diamond dressing tools—C2020, C3015, and CH-L03—transformed the grinding processes for automotive and motorcycle crankshafts.
Case 1: Precision Grinding of Automotive Engine Crankshafts
Workpiece: Automotive Engine Crankshaft
Material: Ductile Iron, Forged Steel
Grinding Machine: CNC Crankshaft Grinder, CNC High-Speed Cylindrical Grinder
Grinding Wheel Size: 750*305*125mm A 80#
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.2-0.1μm
Previous Tool: Formed Wheel Dressing Tool from Another Supplier
Current Tool: C2020 from Cast Grind Solutions
Results:
Efficiency: Dressing efficiency improved by 1.5x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased from 2,000 to over 5,000 workpieces, reducing replacement frequency and costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.2-0.1μm, ensuring high-quality crankshafts.
Case 2: Precision Grinding of Motorcycle and Garden Machinery Crankshafts
Workpiece: Motorcycle Crankshaft, Garden Machinery Crankshaft
Material: Ductile Iron
Grinding Machine: CNC Cylindrical Grinder, Conventional Cylindrical Grinder
Grinding Wheel Size: 500*50*203mm 80#
Grinding Method: Precision Grinding
Surface Roughness Requirement: Ra0.4-0.2μm
Previous Tool: Single-Point Diamond Dresser and Formed Diamond Tool from Another Supplier
Current Tool: C3015, CH-L03 from Cast Grind Solutions
Results:
Efficiency: Dressing efficiency improved by 2x, significantly reducing cycle times.
Tool Life: The lifespan of the tools increased from 3,000 to over 6,500 workpieces, reducing downtime and maintenance costs.
Surface Finish: Consistently achieved the required surface roughness of Ra0.4-0.2μm, meeting stringent quality standards.
Why Diamond Dressing Tools Are Essential in Crankshaft Manufacturing
The success of these cases underscores the importance of advanced diamond dressing tools in crankshaft manufacturing. Here’s why they are indispensable:
Improved Efficiency: Faster dressing cycles and reduced downtime lead to higher productivity.
Extended Tool Life: Longer-lasting tools lower operational costs and minimize interruptions.
Superior Precision: Consistent dressing ensures high-quality surface finishes, critical for crankshaft performance.
Cost-Effectiveness: While the initial investment may be higher, the long-term savings and performance gains are substantial.
At Cast Grind Solutions, we are committed to helping our customers overcome their grinding challenges with innovative solutions. Whether you’re producing automotive engine crankshafts, motorcycle crankshafts, or garden machinery crankshafts, we’re here to help you achieve your goals.
If you’re facing similar challenges in your grinding processes, let’s talk. Our team is ready to provide tailored solutions that meet your specific needs.
